Application:
It is widely adopted in food& drug factories, laboratories, hospitals, microelectronics factories, where there is extreme high demand for hygiene and cleanliness. It completely comply with Food-grade, pharmaceutical GMP standard and Electronic dust-free grade.
Feature:

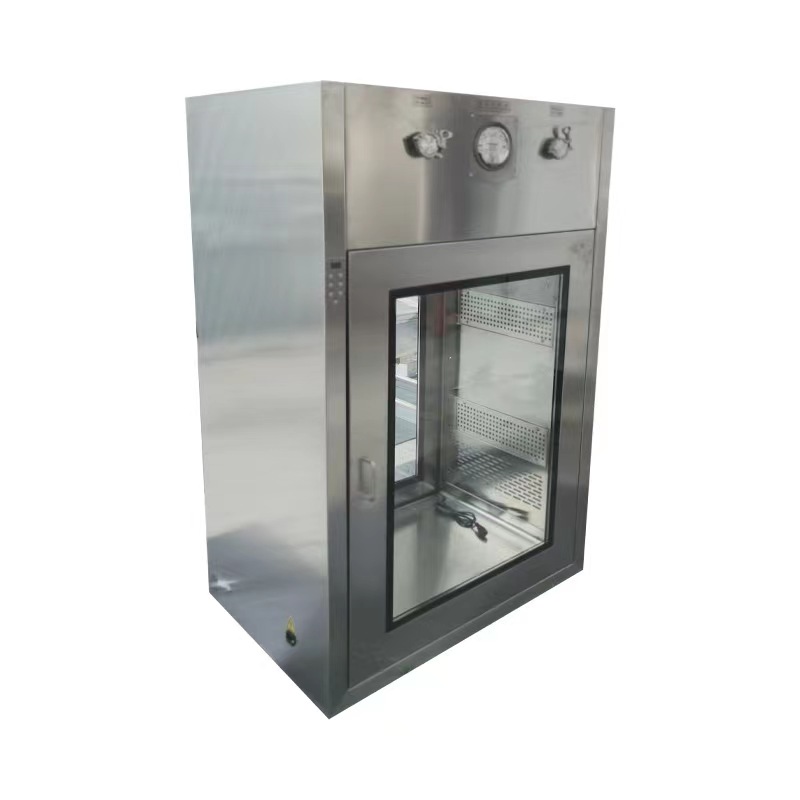

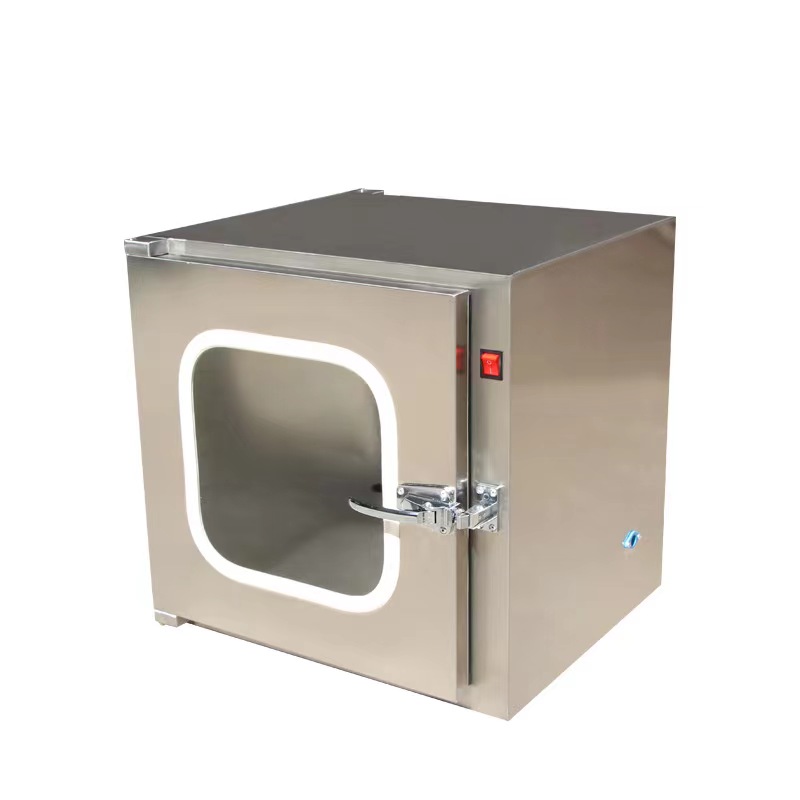

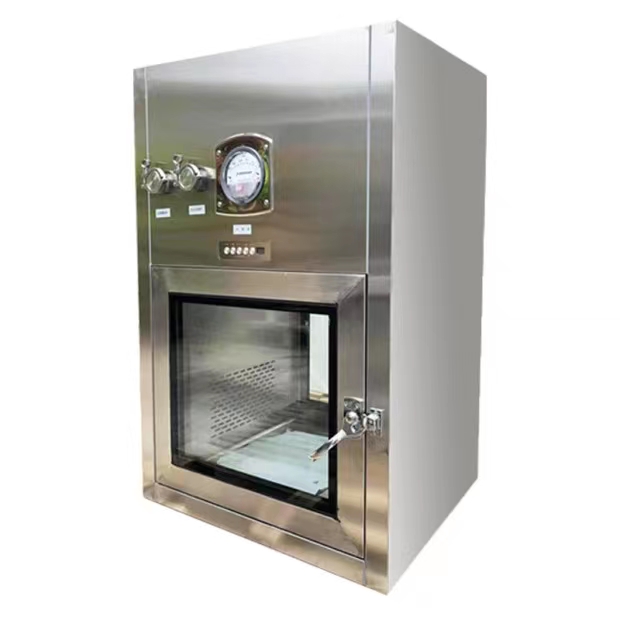

The stainless steel pass box is used to transfer small materials between clean rooms with different cleanliness. Electronic or mechanical interlock is available. Two doors can ' t open at the same time, guarantee the clean room indoor cleanliness. And there is a sound transmission tube for information.
Description:
The pass box is the auxiliary equipment of the clean room, its function is to purify the buffer between the indoor and outdoor clean area when the goods are transferred, to prevent the goods from destroying the clean room air and room pressure by opening the door when transferring the goods, and it can reduce the movement of the operating personnel to prevent the entry of dust from the outside area and stabilize the clean room.
Specification:
According to customer's requirements.
Material |
Stainless Steel SUS304 |
Cleanliness | 100-300000 |
Interlock | Electronic/Mechanical |
Type | Dynamic/Static |
Average Wind Speed | 0.3-0.6m/s(Adjustable) |
Noise | ≤62dB(A) |
Vibration | ≤5μm |
Illumination | ≥200LX |
Power Source | 220V/50Hz |
Weight(kg) | 35-65kg |
External Dimension |
Customized |
SS Pass Box
